Description

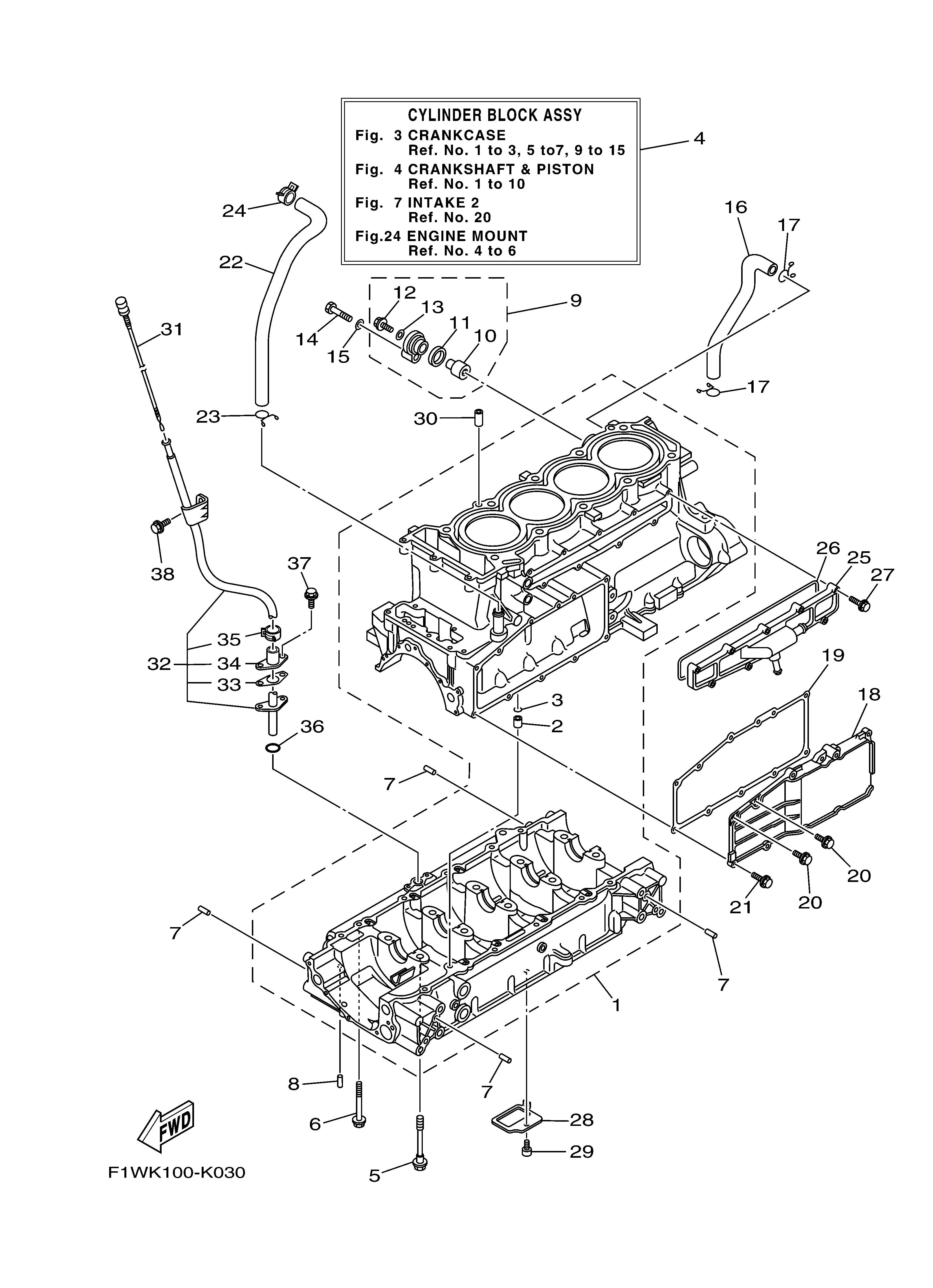

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 6CS-15100-20-00 | CRANKCASE ASSY | 1 |
| 2 | 99530-10114-00 | . PIN, DOWEL | 1 |
| 3 | 93210-11453-00 | . O-RING | 1 |
| 4 | 6CS-W009B-28-94 | CYLINDER BLOCK ASSY | 1 |
| 5 | 90105-10071-00 | . BOLT, FLANGE | 1 |
| 6 | 95814-06070-00 | BOLT, FLANGE | 1 |
| 7 | 93606-12019-00 | PIN, DOWEL | 4 |
| 8 | 93604-10M03-00 | PIN, DOWEL | 1 |
| 9 | 69J-11301-11-00 | ANODE COVER ASSY | 1 |
| 10 | 68V-11325-02-00 | . ANODE | 1 |
| 11 | 67F-11328-01-00 | GROMMET, ANODE | 1 |
| 12 | 90105-06M07-00 | . BOLT, FLANGE | 1 |
| 13 | 90430-06M03-00 | . GASKET | 1 |
| 14 | 97095-08040-00 | BOLT | 1 |
| 15 | 92990-08600-00 | WASHER, PLAIN (663) | 1 |
| 16 | 6S5-11377-00-00 | HOSE | 1 |
| 17 | 90467-190A0-00 | CLIP | 2 |
| 18 | 6S5-1131M-20-00 | COVER | 1 |
| 19 | 6S5-13557-00-00 | . GASKET | 1 |
| 20 | 95024-06014-00 | BOLT, FLANGE (SMALL HEAD) | 2 |
| 21 | 95024-06020-00 | BOLT, FLANGE (SMALL HEAD) | 1 |
| 22 | 6S5-11126-00-00 | PIPE, BREATHER 3 | 1 |
| 23 | 90467-190A0-00 | CLIP | 1 |
| 24 | 90467-200A0-00 | CLIP | 1 |
| 25 | 99999-04467-00 | JOINT, 1 SET | 1 |
| 26 | 6S5-12517-01-00 | . GASKET, WATER INLET | 1 |
| 27 | 95024-06025-00 | BOLT, FLANGE(4KG) | 1 |
| 28 | 6S5-13337-00-00 | PLATE, BAFFLE LOWER | 1 |
| 29 | 91317-06012-00 | BOLT,SOCKET | 1 |
| 30 | 99530-10114-00 | PIN, DOWEL | 1 |
| 31 | 6S5-15362-01-00 | PLUG, OIL LEVEL | 1 |
| 32 | 6S5-8572F-10-00 | PIPE, OIL LEVEL | 1 |
| 33 | 6BH-1319K-00-00 | . PLATE | 1 |
| 34 | 6CS-85516-00-00 | SPACER | 1 |
| 35 | 90467-150A1-00 | . CLIP | 1 |
| 36 | 93210-12790-00 | . O-RING | 1 |
| 37 | 90109-06268-00 | BOLT | 1 |
| 38 | 95024-06012-00 | BOLT, FLANGE(2UJ) | 1 |
