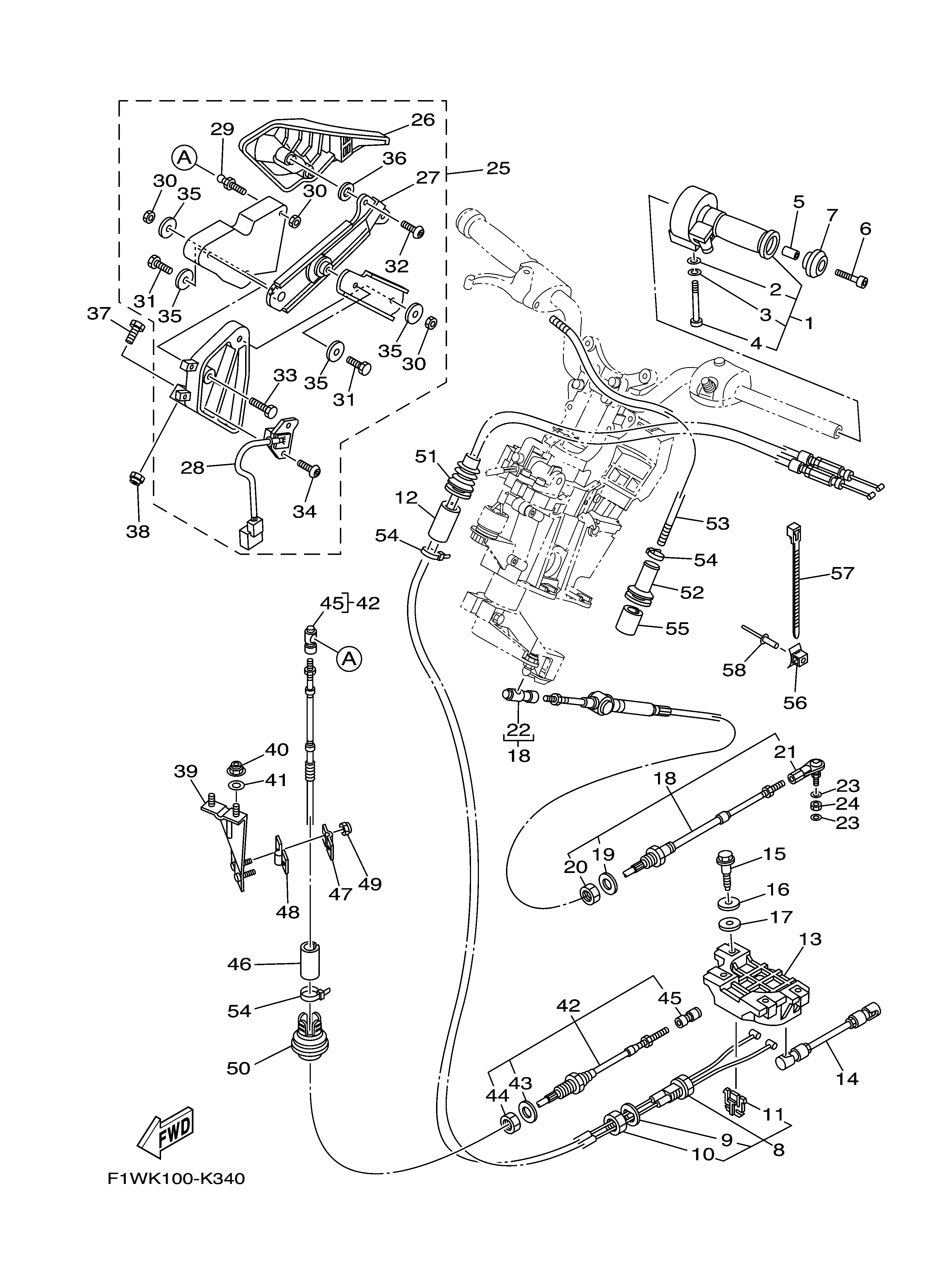

Description
| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | F1W-6153A-00-00 | NOZZLE,CONTROL ASSY | 1 |
| 2 | 92990-06200-00 | . WASHER, PLAIN | 1 |
| 3 | 92995-06100-00 | WASHER(6A1) | 1 |
| 4 | F1W-613C1-10-00 | SCREW | 1 |
| 5 | 90387-05800-00 | COLLAR | 1 |
| 6 | 90110-05908-00 | BOLT, HEXAGON SOCKET HEAD | 1 |
| 7 | GP7-U155F-00-00 | GRIP, END | 1 |
| 8 | F1W-6153E-01-00 | CABLE,NOZZLE CONTROL 3 | 1 |
| 9 | F1W-61438-00-00 | . PACKING C | 1 |
| 10 | F1B-6151S-01-00 | NUT | 1 |
| 11 | F1W-61557-00-00 | . GUIDE, CABLE | 1 |
| 12 | GJ1-U7578-12-00 | PACKING, HOSE 2 | 1 |
| 13 | F1W-6153J-01-00 | REMOCON,NOZZLE 2 | 1 |
| 14 | F1W-6150A-00-00 | ROD ASSY | 1 |
| 15 | 90109-06233-00 | BOLT | 1 |
| 16 | 90201-099U3-00 | WASHER, PLATE | 1 |
| 17 | 90202-08002-00 | WASHER, PLATE | 1 |
| 18 | F1S-61481-12-00 | CABLE, STEERING | 2 |
| 19 | F1B-61438-00-00 | . PACKING C | 1 |
| 20 | F1B-6151S-01-00 | NUT | 1 |
| 21 | F1B-61461-02-00 | . STUD, JOINT BALL | 1 |
| 22 | F2N-61460-00-00 | . BALL JOINT ASSY | 1 |
| 23 | 90201-06906-00 | WASHER, PLATE | 2 |
| 24 | 9538R-06700-00 | NUT | 1 |
| 25 | F1W-6134A-01-00 | REMOCON. LEVER ASSY. | 1 |
| 26 | F1W-62714-00-00 | . GRIP | 1 |
| 27 | F1W-62289-00-00 | . LEVER | 1 |
| 28 | F1W-6830K-01-00 | REVERSE SENSOR ASSY | 1 |
| 29 | F1X-61461-00-00 | . STUD, JOINT BALL | 1 |
| 30 | 95720-06300-00 | . NUT, SELF-LOCKING | 3 |
| 31 | 97080-06014-00 | BOLT(GJ3) | 2 |
| 32 | F1X-613C1-00-00 | . SCREW | 1 |
| 33 | F0D-61355-00-00 | . BOLT | 1 |
| 34 | F1B-613C1-10-00 | SCREW | 1 |
| 35 | FJ0-61353-00-00 | . WASHER | 4 |
| 36 | F1W-6134E-00-00 | . WASHER | 1 |
| 37 | 97080-06030-00 | BOLT | 1 |
| 38 | F2N-U142L-00-00 | NUT, LOCK | 1 |
| 39 | F1W-U1467-02-00 | BRACKET,STOPPER CABLE | 1 |
| 40 | 95780-08300-00 | NUT, NYLON (6J8) | 1 |
| 41 | 9299R-08200-00 | WASHER | 1 |
| 42 | F1W-6149C-11-00 | CABLE,REVERSE | 2 |
| 43 | F1B-61438-00-00 | . PACKING C | 1 |
| 44 | F1B-6151S-01-00 | NUT | 1 |
| 45 | F1B-61460-00-00 | . BALL JOINT ASSY | 2 |
| 46 | F1W-U146G-00-00 | PACKING, CABLE | 1 |
| 47 | GH1-61468-01-00 | STOPPER, CABLE | 1 |
| 48 | GU5-6146K-10-00 | HOLDER, STOPPER | 1 |
| 49 | 9572R-06300-00 | NUT, NYLON | 1 |
| 50 | F1W-U1519-00-00 | GROMMET | 1 |
| 51 | F0D-6822E-00-00 | GROMMET | 1 |
| 52 | GU2-6822E-01-00 | GROMMET | 1 |
| 53 | 90447-07001-00 | HOSE, WITH SPRING (L400) | 1 |
| 54 | 90601-200U1-00 | BAND | 3 |
| 55 | GJ1-U7578-12-00 | PACKING, HOSE 2 | 1 |
| 56 | F1W-U828M-00-00 | BASE, CLAMP | 1 |
| 57 | 90464-32801-00 | CLAMP | 1 |
| 58 | 90267-48802-00 | RIVET, BLIND | 1 |
