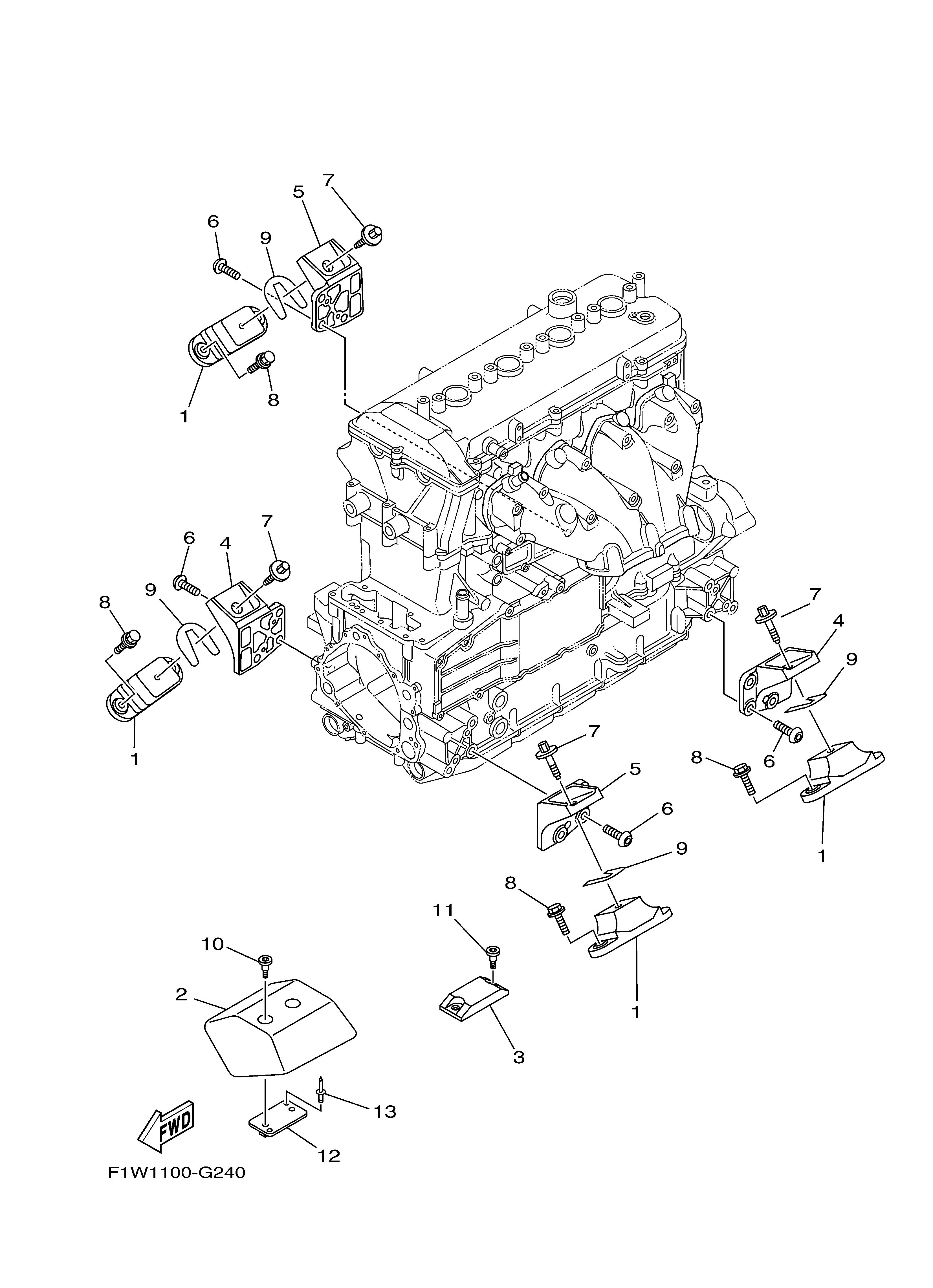

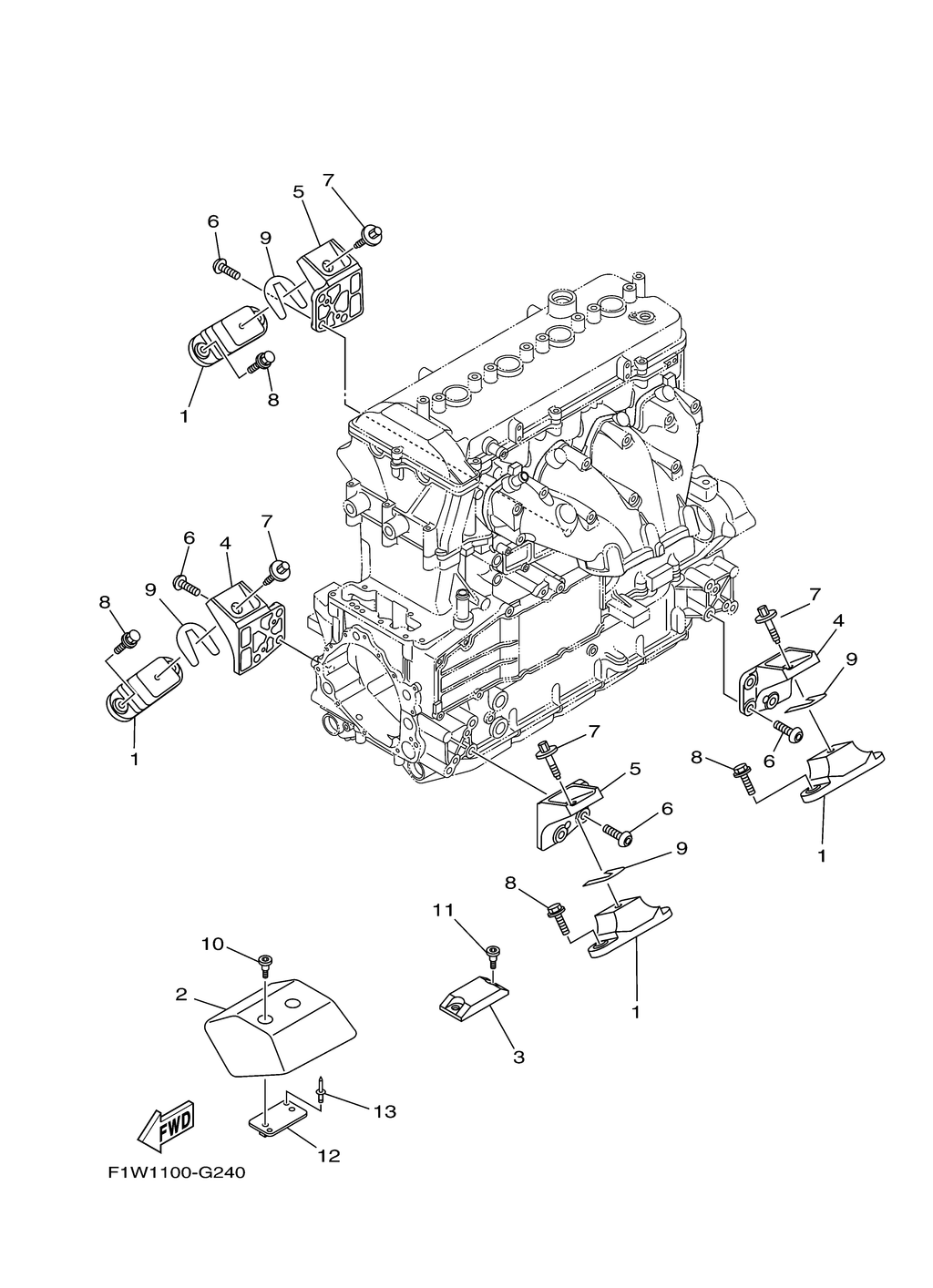

Description
| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 67X-44517-10-00 | MOUNT RUBBER | 4 |
| 2 | 6BH-G4532-00-00 | STOPPER, UPPER MOUNT | 1 |
| 3 | 6BH-G4574-00-00 | STOPPER, LOWER MOUNT RUBBER | 1 |
| 4 | 6BH-41661-00-00 | BRACKET 1 | 2 |
| 5 | 6BH-41662-00-00 | BRACKET 2 | 2 |
| 6 | 90149-10052-00 | SCREW | 4 |
| 7 | 90119-08860-00 | BOLT, WITH WASHER | 4 |
| 8 | 90119-08829-00 | BOLT, WITH WASHER | 4 |
| 9 | EU0-67354-A0-00 | SHIM (T=0.1) | 4 |
| 10 | 90109-06874-00 | BOLT | 1 |
| 11 | 90109-06875-00 | BOLT | 1 |
| 12 | F1W-U732B-00-00 | PLATE | 1 |
| 13 | 90267-489U2-00 | RIVET, BLIND | 1 |
