Description

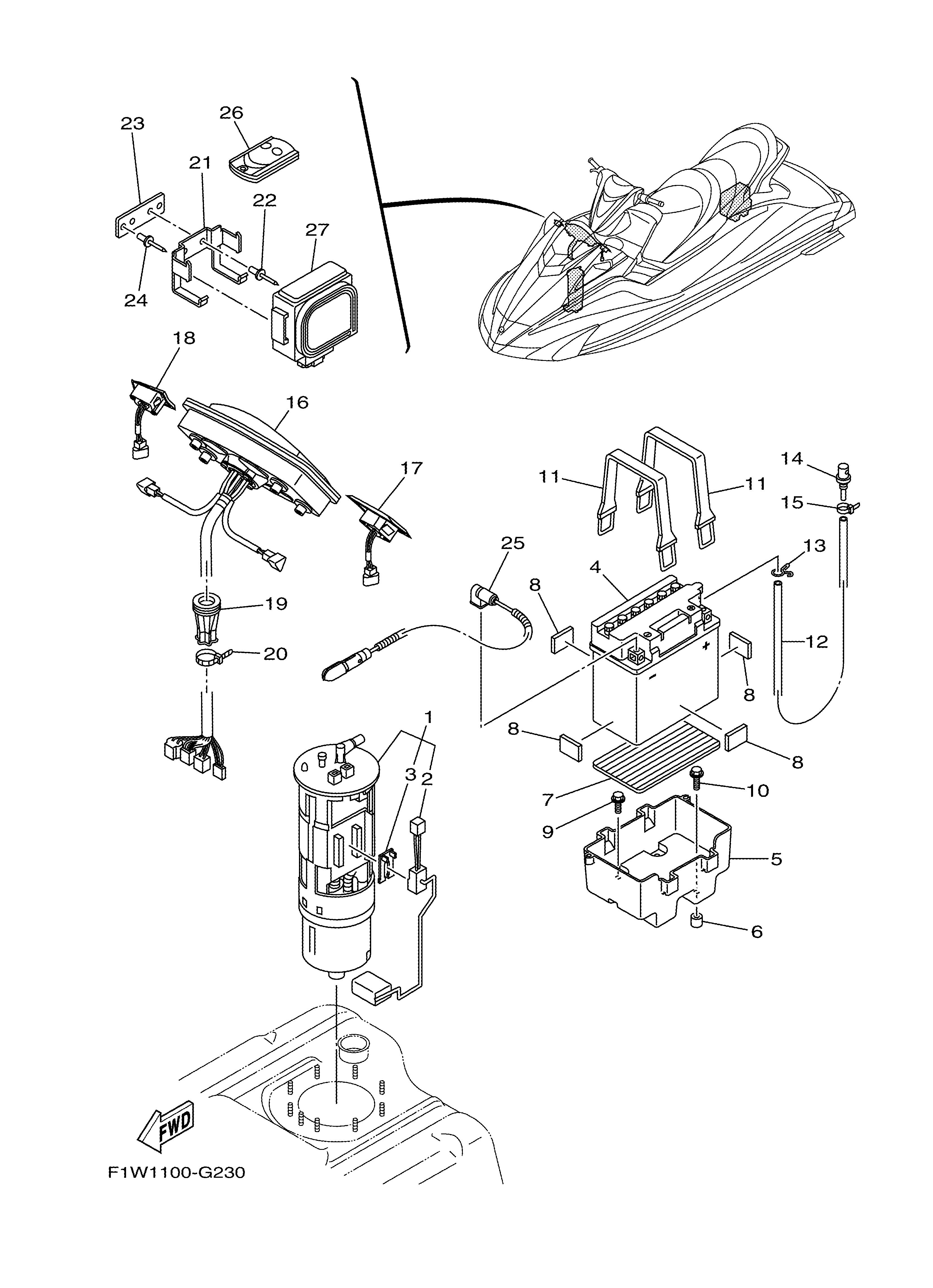

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 6S5-13907-05-00 | FUEL PUMP COMP. | 1 |
| 2 | 99999-04571-00 | FUEL SENDER ASSY SET | 1 |
| 3 | 60E-82556-10-00 | DAMPER, STOPPER | 1 |
| 4 | EU0-82110-08-00 | BATTERY ASSY | 1 |
| 5 | GP7-U8211-00-00 | CASE, BATTERY | 1 |
| 6 | F1B-6821G-01-00 | PLATE, BATTERY | 1 |
| 7 | F1S-U8221-00-00 | PAD, BATTERY | 1 |
| 8 | EU0-U8221-31-00 | PAD, BATTERY | 4 |
| 9 | 90119-069US-00 | BOLT, WITH WASHER | 1 |
| 10 | 90119-06820-00 | BOLT, WITH WASHER | 1 |
| 11 | EU0-U821D-00-00 | BAND,BATTERY 1 | 2 |
| 12 | F0D-U785G-10-00 | HOSE, AIR VENT | 1 |
| 13 | 90467-089U1-00 | CLIP | 1 |
| 14 | GJ3-6215F-00-00 | NIPPLE | 1 |
| 15 | 90465-10098-00 | CLAMP | 1 |
| 16 | F1W-6820A-02-00 | METER ASSY | 1 |
| 17 | F1X-68090-00-00 | SWITCH ASSY. | 1 |
| 18 | F1X-68090-10-00 | SWITCH ASSY. | 1 |
| 19 | F3J-U822E-01-00 | GROMMET | 1 |
| 20 | 90464-32801-00 | CLAMP | 1 |
| 21 | F1W-U826C-00-00 | BRACKET | 1 |
| 22 | 90267-48938-00 | RIVET (EU0) | 1 |
| 23 | F1W-U8376-00-00 | PLATE | 1 |
| 24 | 90267-48938-00 | RIVET (EU0) | 1 |
| 25 | 6JP-82116-00-00 | WIRE, MINUS LEAD | 1 |
| 26 | 6B6-86261-00-00 | XMTR. COMP. | 1 |
| 27 | 6B6-86265-00-00 | RECEIVER COMPLETE | 1 |
