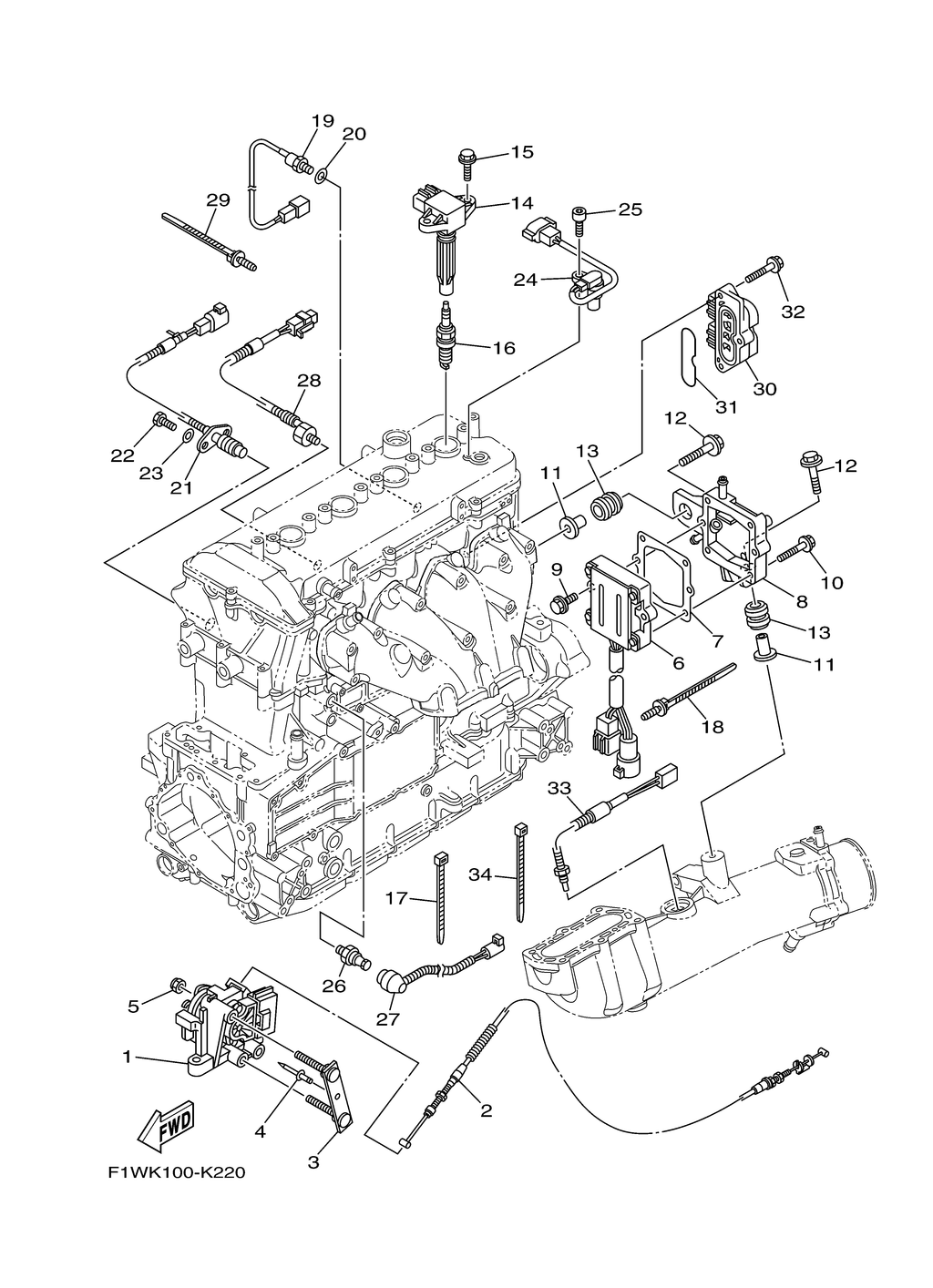

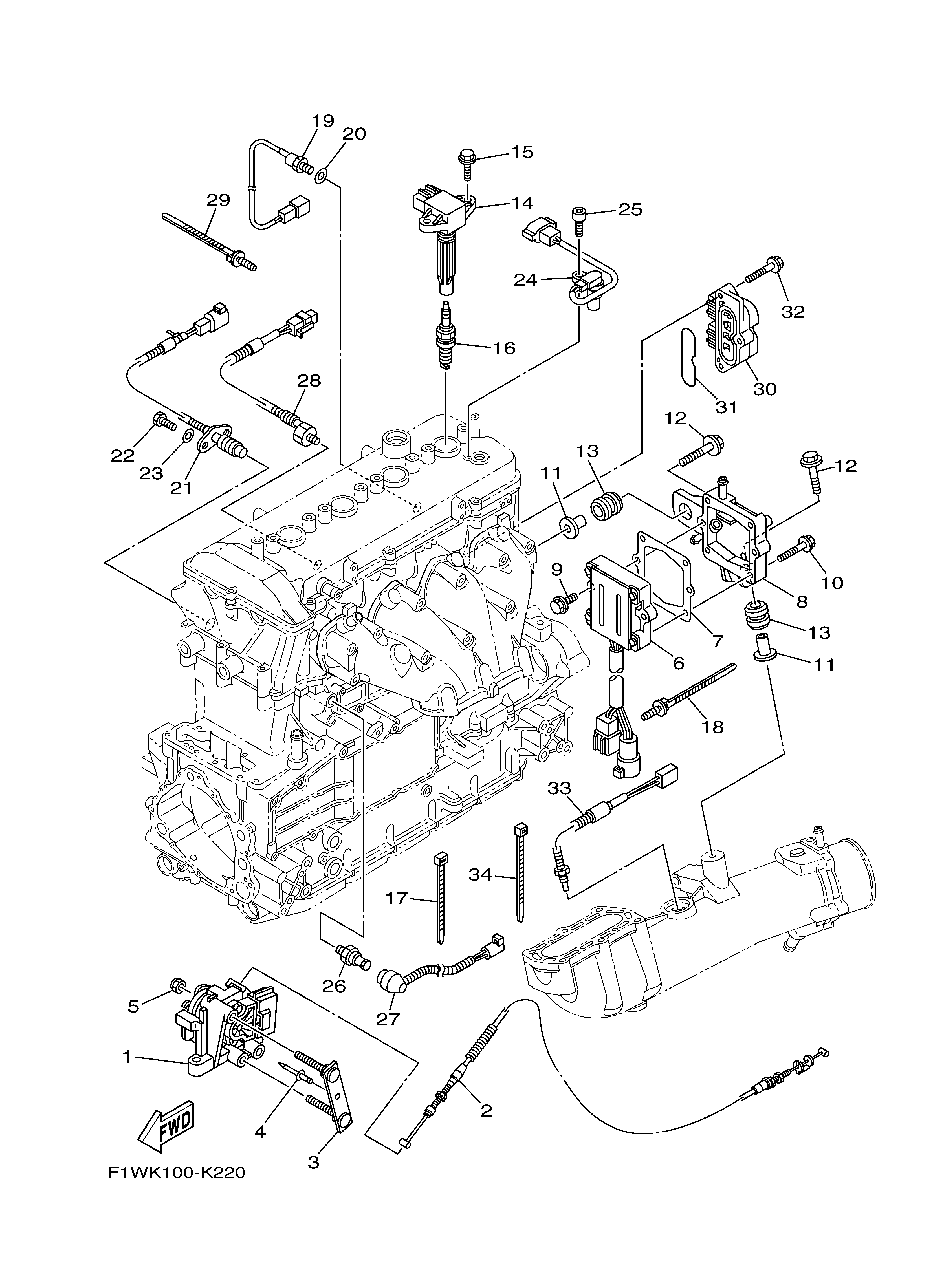

Description
| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 6D3-14305-21-00 | ACCEL. POSITON SENSOR ASSY | 1 |
| 2 | 6S5-26311-10-00 | CABLE, THROTTLE 1 | 1 |
| 3 | F1W-U7254-00-00 | BRACKET, THROTTLE | 1 |
| 4 | 90267-48938-00 | RIVET (EU0) | 1 |
| 5 | 95780-08300-00 | .. NUT, FLANGE | 1 |
| 6 | 6S5-81960-01-00 | RECTIFIER & REGULATOR ASSY | 1 |
| 7 | 6S5-81975-00-00 | PLATE, RECTIFIER FITTING | 1 |
| 8 | 6S5-81972-01-94 | COVER, RECTIFIER | 1 |
| 9 | 90119-06MA3-00 | BOLT, WITH WASHER | 1 |
| 10 | 90119-06048-00 | BOLT, WITH WASHER | 1 |
| 11 | 90387-08M37-00 | COLLER (6E5) | 2 |
| 12 | 90119-08187-00 | BOLT, WITH WASHER | 2 |
| 13 | 90480-22M15-00 | GROMMET | 2 |
| 14 | 6S5-82310-10-00 | IGNITION COIL ASSY | 1 |
| 15 | 90105-06903-00 | BOLT, FLANGE | 1 |
| 16 | LFR-6A000-00-00 | PLUG, SPARK (NGK LFR6A-00) | 1 |
| 17 | 90465-13M18-00 | CLAMP | 1 |
| 18 | 90464-20005-00 | CLAMP | 1 |
| 19 | 61A-85790-01-00 | THERMOSENSOR ASSY | 1 |
| 20 | 92990-10600-00 | WASHER, PLATE | 1 |
| 21 | 60E-82560-01-00 | THERMO SWITCH ASSY | 1 |
| 22 | 97D95-06016-00 | BOLT, HEXAGON DEEP RECESS | 1 |
| 23 | 92990-06600-00 | WASHER, PLAIN (646) | 1 |
| 24 | 6D3-85896-01-00 | SENSOR, CAM POSITION | 1 |
| 25 | 91380-06016-00 | BOLT | 1 |
| 26 | 68V-82504-00-00 | OIL PRESSURE SWITCH ASSY | 1 |
| 27 | 6S5-81315-01-00 | LEAD WIRE ASSY | 1 |
| 28 | 6P2-85780-01-00 | SENSOR, KNOCK | 1 |
| 29 | 90464-20005-00 | CLAMP | 1 |
| 30 | 6D3-8273J-02-00 | EARTH PLATE COMP. | 1 |
| 31 | 93210-60ME8-00 | O-RING | 1 |
| 32 | 90119-06048-00 | BOLT, WITH WASHER | 1 |
| 33 | 6AA-85790-00-00 | THERMOSENSOR ASSY | 1 |
| 34 | 90464-20005-00 | CLAMP | 1 |
