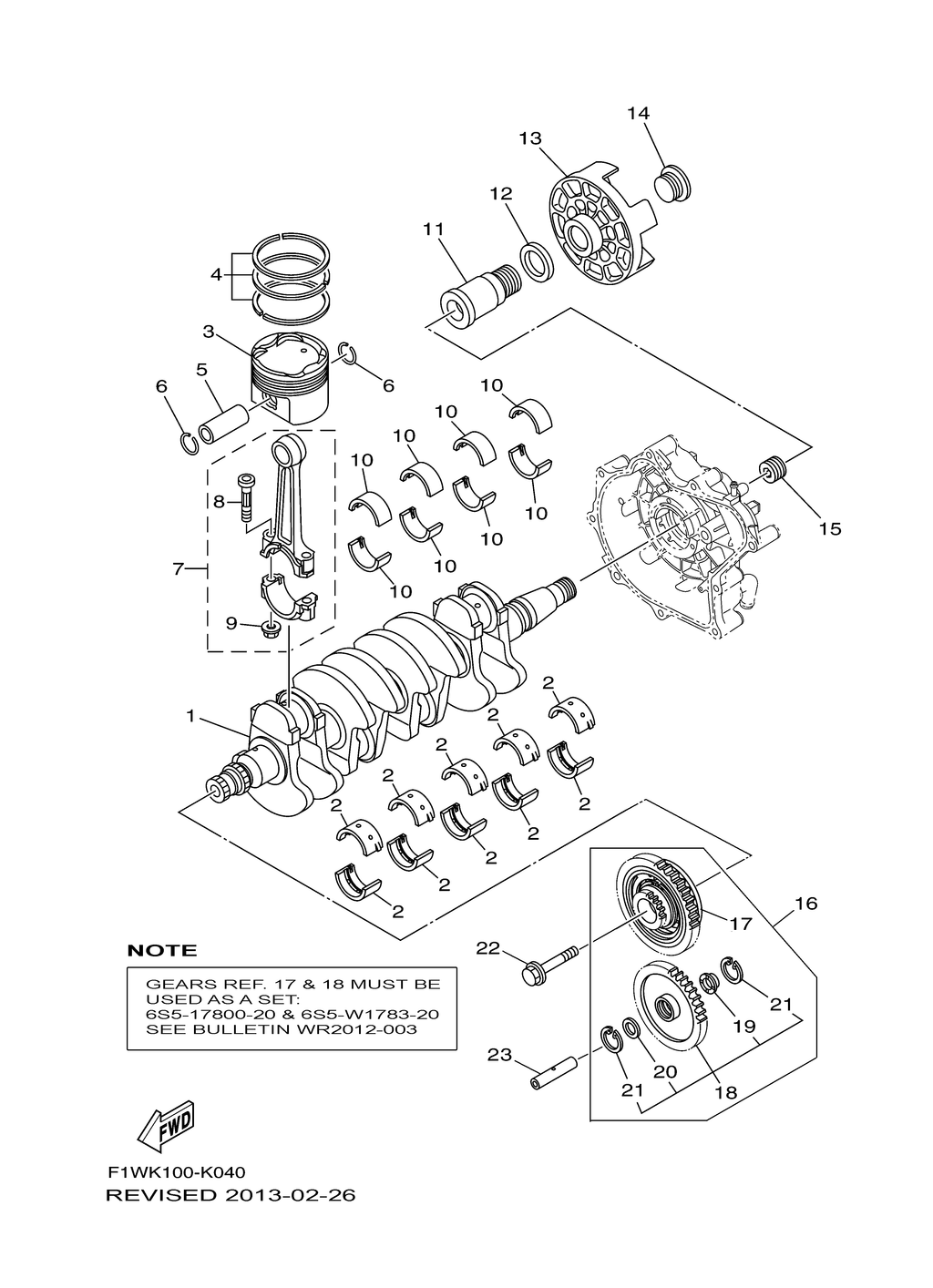

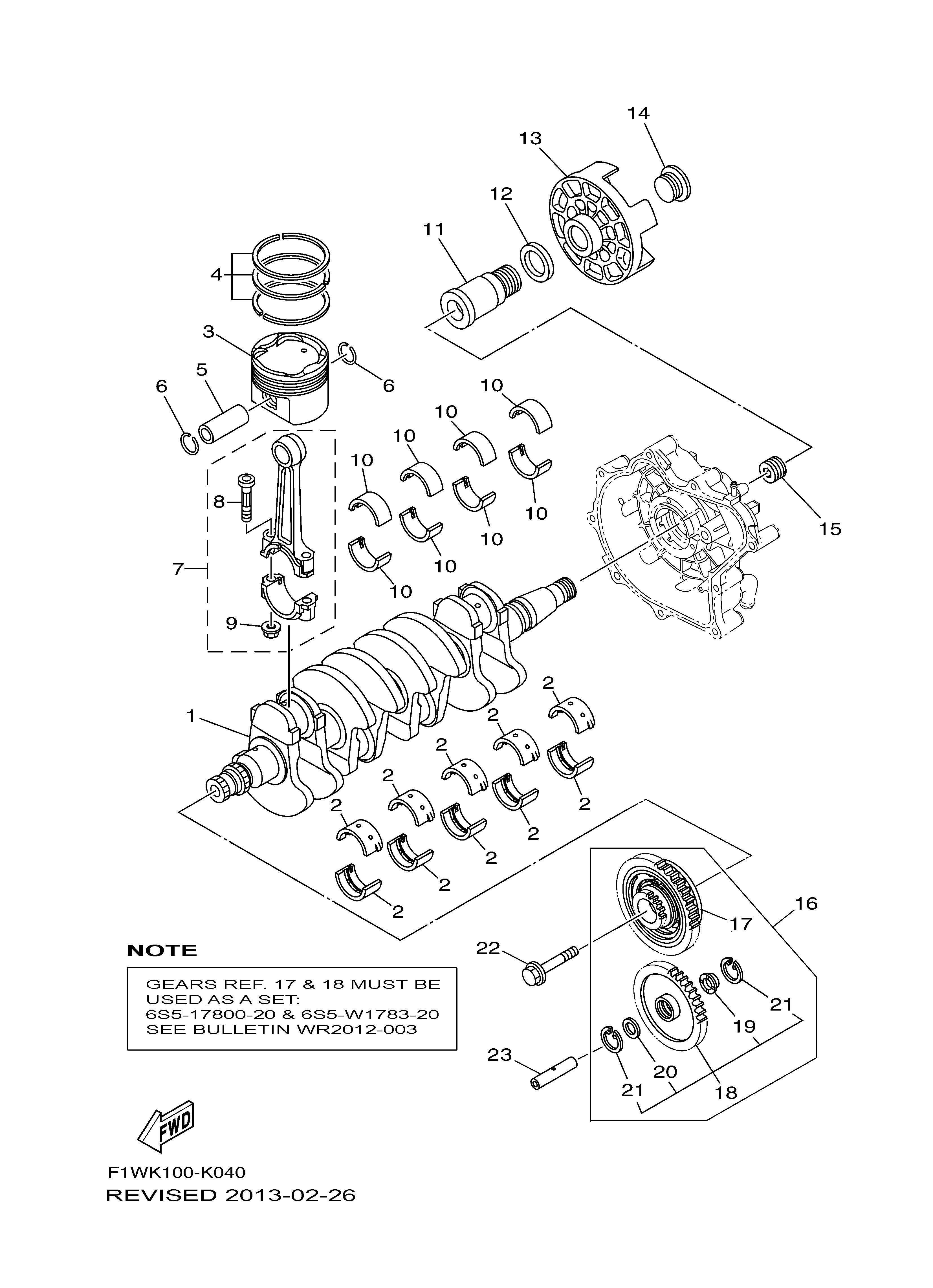

Description
| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 6S5-11411-01-00 | CRANKSHAFT | 1 |
| 2 | 6S5-11416-00-00 | PLANE BEARING, CRANKSHAFT 1 | 10 |
| 3 | 6ET-11631-01-B0 | PISTON (STD) | 1 |
| 4 | 6S5-11603-01-00 | PISTON RING SET (STD) | 1 |
| 5 | 6S5-11633-00-00 | PIN, PISTON | 1 |
| 6 | 93450-24028-00 | CIRCLIP | 2 |
| 7 | 6S5-11650-00-00 | CONNECTING ROD ASSY | 1 |
| 8 | 6S5-11654-00-00 | . BOLT, CONNECTING ROD | 1 |
| 9 | 90179-09379-00 | . NUT | 1 |
| 10 | 6S5-11656-00-00 | PLANE BEARING, CONNECTING ROD | 8 |
| 11 | 6S5-17572-01-00 | SHAFT, TRANSFER | 1 |
| 12 | 6S5-12289-00-00 | WASHER | 1 |
| 13 | 6S5-45813-01-00 | FLANGE, COUPLING | 1 |
| 14 | 6S5-17525-01-00 | HOLDER 2 | 1 |
| 15 | 6S5-11459-01-00 | NUT, SPECIAL | 1 |
| 16 | 99999-04107-00 | GEAR UNIT & DRIVE GEAR SET | 1 |
| 17 | 6S5-17800-20-00 | . GEAR UNIT ASSY (57T) | 1 |
| 18 | 6S5-W1783-20-00 | . DRIVE GEAR & COLLAR SET (18T) | 1 |
| 19 | 6S5-17529-00-00 | . WASHER, THRUST | 1 |
| 20 | 90201-13013-00 | WASHER, PLATE | 1 |
| 21 | 99009-24700-00 | . CIRCLIP | 2 |
| 22 | 6S5-17031-00-00 | BOLT | 1 |
| 23 | 6S5-17553-00-00 | SHAFT, MIDDLE DRIVEN | 1 |
