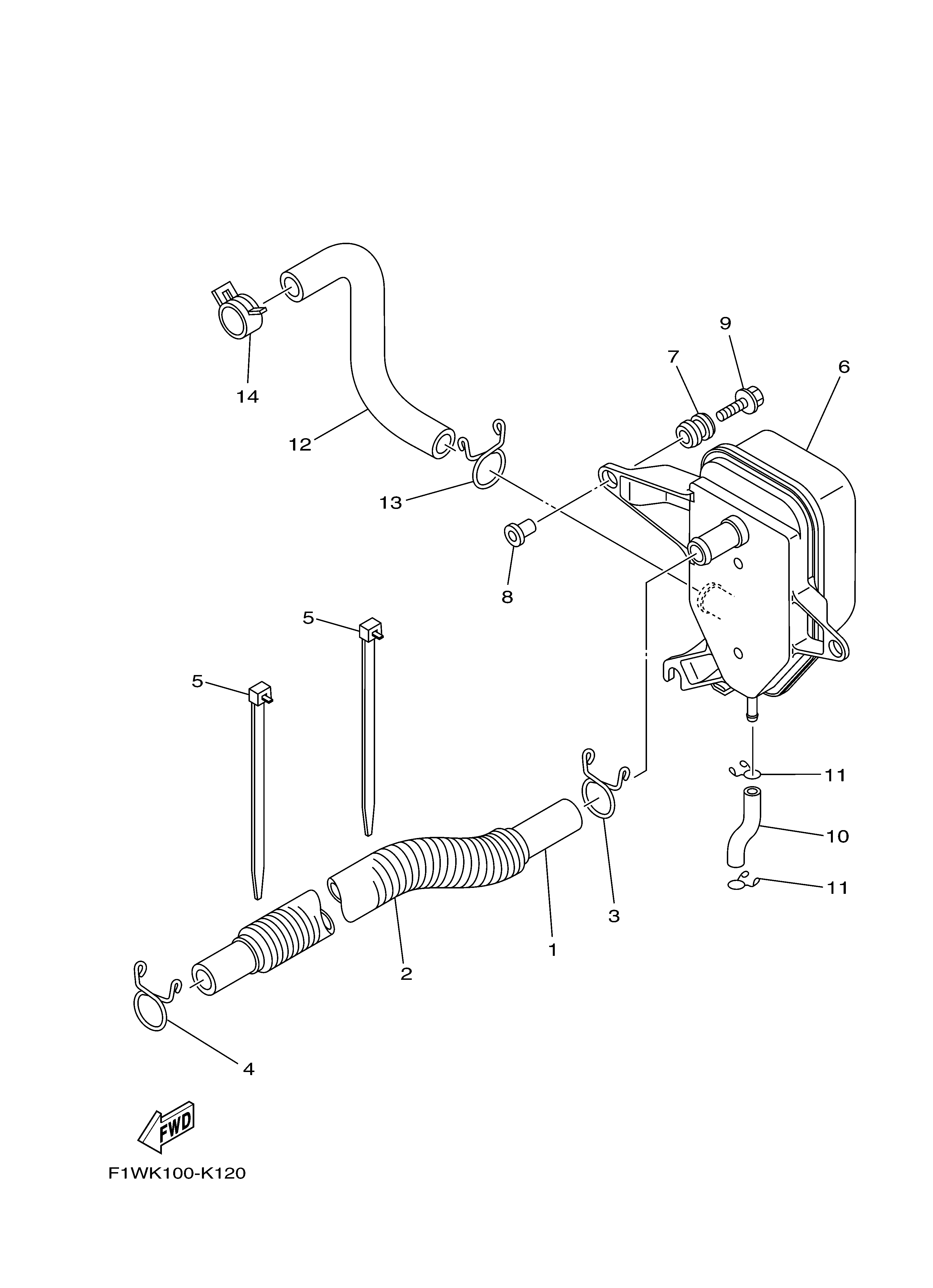

Description
| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 6AP-11166-00-00 | PIPE, BREATHER 1 | 1 |
| 2 | 90447-25003-00 | TUBE (L650) | 1 |
| 3 | 90467-240A2-00 | CLIP | 1 |
| 4 | 90467-240A2-00 | CLIP | 2 |
| 5 | 90465-14M66-00 | CLAMP | 2 |
| 6 | 6BH-11160-00-00 | BREATHER ASSY | 1 |
| 7 | 61N-82317-01-00 | DAMPER, IGNITION COIL | 1 |
| 8 | 90387-06119-00 | COLLAR | 1 |
| 9 | 95814-06030-00 | BOLT, FLANGE | 1 |
| 10 | 6S5-11125-00-00 | PIPE, BREATHER 4 | 1 |
| 11 | 90467-11M08-00 | CLIP(72X) | 2 |
| 12 | 6S5-11167-00-00 | PIPE, BREATHER 2 | 1 |
| 13 | 90467-240A2-00 | CLIP | 1 |
| 14 | 90467-240A0-00 | CLIP | 0 |
